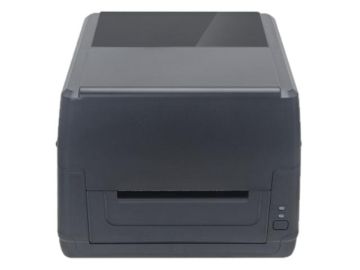

Birch DP-3422
- communication interface USB, Ethernet
- compact size
- 203 dpi
- easy media loading
- print speeds up to 127 mm/s
- ribbon length up to 300 m
- 8 MB Flash memory, 8 MB SDRAM with microSD expansion slot up to 4 GB
Dostupnost:
Raspoloživo
SKU
DP-3422B
| SKU | DP-3422B |
|---|---|
| Proizvođač | Birch |
| Rok isporuke | 1 |
| Garancija | 12 Meseci |
| Functionality & Operation | |
|---|---|
| CPU Type | 32-bit RISC |
| Communication interface | Ethernet, USB |
| Maximal print length | 1778mm |
| Maximal print width | 104mm |
| Print mode | direct thermal, thermal-transfer |
| Fonts & barcode rotation | 0°, 90°, 180°, 270° |
| Memory | 8MB DRAM |
| Memory | 8MB Flash |
| Fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable |
| Expansion slot | Micro SD Card (SDHC) |
| Print speed | 127mm/sec (5 ips) |
| Print resolution | 203dpi |
| Commands set | TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL) |
| 1D Barcode Symbologies | Code 39, Code 93, Code 128, Code 128 subset A.B.C., Code128UCC, Codabar, EAN 13/UPCA, EAN 13/UPCA + ADDON 2, EAN 13/UPCA + ADDON 5, EAN 8, EAN 8 + ADDON 2, EAN 8 + ADDON 5, EAN-UCC, EAN 13, Interleaved 2 of 5, MSI, Plessey, Postnet, China Postal Code, GS1-DataBar, EAN 128, Code 11, GS1 128 |
| 2D Code Symbologies | PDF417, QR code, MaxiCode, Data Matrix, Aztec |
| Optical | |
| Sensors | black mark detector, end-of-media detector, ribbon end sensor, open print-head detector, TT ribbon detector |
| Electrical | |
| Power Source | 100-240V, 1.8A, 50-60Hz |
| Mechanical | |
| Weight | 2.56kg |
| Color | black |
| Body housing | ABS plastic |
| Dimensions | Width: 232mm, Height: 171mm Length: 282mm |
| Consumables | |
| Max. ribbon length | 300m |
| Minimal label length | 10mm |
| Maximal roll diameter | 127mm |
| Ribbon core diameter | 25.4mm |
| Media core diameter | 25.4 to 76.2mm |
| Ribbon width | 30 to 110mm |
| Maximal paper width | 118mm |
| Minimal paper width | 25.4mm |
| Media thickness | 0.06 to 0.254mm |
| Media type | textile ribbon, Roll-feed, fan-fold, black-marked media, paper and thermal-paper labels, perforated, polyethylen, datapol, notch, printable polyolefin, thermal labels, tags, tickets, continuous |
| Environment | |
| Operating temperature | 5 to 40°C |
| Operating humidity (non-condensing) | 25 to 85% |
| Storage temperature | -40 to 60°C |
| Storage humidity (non-condensing) | 10 to 90% |
| Others | |
| Certifications | CE Class A, CCC, CB, FCC |
